제품 설명

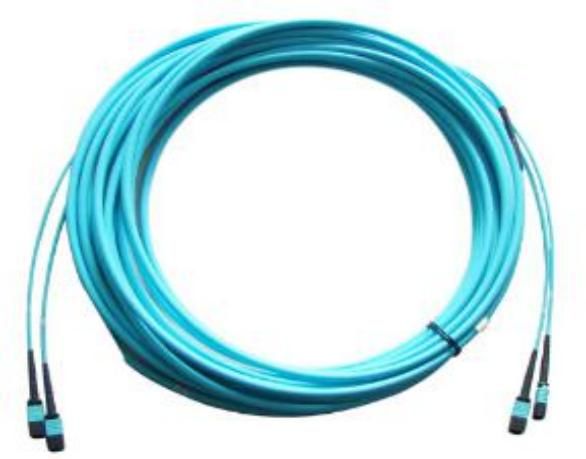

MPO/MTP Backbone Optical Cable

MPO/MTP connectors feature multi-core and multi-channel characteristics designed for high-speed transmission. These backbone optical cables are primarily used in data centers for connections between module boxes and cable frames, as well as for connecting active devices and QSFP/SFP optical transceiver modules in backbone network cabling.

Product Features

High density connectivity
Low loss transmission
MPO/MTP connector compatibility

Applications

Data center infrastructure
High-density module boxes or optical modules connection
Large core count high-density card connection
Convertible optical transmission end face connection

Technical Parameters

Type of optical fiber

OS2/G657A/OM3/OM4

Connector type

Model	Wavelength	End face	Standard type	Low-loss type
MPO/MTP Multimode	@850/1300	12F/PC	≦0.50dB	≦0.35dB
MPO/MTP Multimode	@850/1300	24F/PC	≦0.50dB	≦0.35dB
MPO/MTP Single mode	@1310/1550	12F/PC	≦0.50dB	≦0.35dB
MPO/MTP Single mode	@1310/1550	24F/PC	≦0.70dB	≦0.50dB

Optical cable type

Fiber, flat cable or round cable

Attenuation

@850nm≦3.5dB, @1300nm≦1.5dB
@1310nm≦0.4dB, @1550nm≦0.3dB

Temperature

Operating: -20℃~70℃
Storage: -40℃~85℃

Standards compliance

GR-1435-CORE, IEC-61754-7, TIA-604-5(FOCIS5), ROHS

Ordering Guide

Connection head A	A Attribute	Connection head B	B Attribute	Type of optical fiber	Core	Polarity	Outer skin color	Outer skin type	Length
MPO/MTP	Female head/Male head	MPO/MTP	Female head/Male head	OS2/G657 A/OM3/OM4	8/12/24/48	A/B/C	Single mode: yellow /OM3:green blue /OM4:Light blue	LSZH/OFNR/OFNP	Customer Customized
MPO/MTP Low loss

Note: Among the above multiple product information options, only one can be selected for information confirmation.
